#include <shaderbuilder.h>

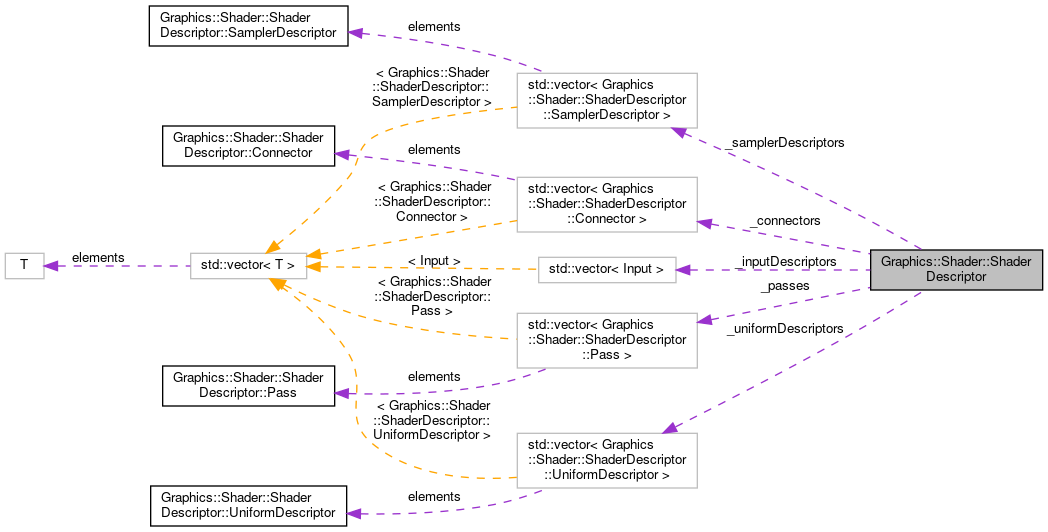

Collaboration diagram for Graphics::Shader::ShaderDescriptor:

[legend]

Classes
struct	Connector

struct	InputDescriptor

struct	Pass

struct	SamplerDescriptor

struct	UniformDescriptor

Public Types
enum	Input { INPUT_POSITION0, INPUT_POSITION1, INPUT_POSITION2, INPUT_POSITION3, INPUT_NORMAL0, INPUT_NORMAL1, INPUT_NORMAL2, INPUT_NORMAL3, INPUT_UV0, INPUT_UV1, INPUT_UV0_MATRIX, INPUT_UV1_MATRIX, INPUT_UV_CUBE, INPUT_UV_SPHERE, INPUT_COLOUR }
	< Vertex shader input data. Each should have a corresponding output. More...

enum	Sampler { SAMPLER_TEXTURE_0, SAMPLER_TEXTURE_1, SAMPLER_TEXTURE_2, SAMPLER_TEXTURE_3, SAMPLER_TEXTURE_4, SAMPLER_TEXTURE_5, SAMPLER_TEXTURE_6, SAMPLER_TEXTURE_7, SAMPLER_TEXTURE_NONE }

enum	SamplerType { SAMPLER_1D, SAMPLER_2D, SAMPLER_3D, SAMPLER_CUBE }

enum	Uniform { UNIFORM_V_OBJECT_MODELVIEW_MATRIX, UNIFORM_V_PROJECTION_MATRIX, UNIFOM_V_MODELVIEW_MATRIX, UNIFORM_F_ALPHA, UNIFORM_F_COLOUR }

enum	Action { ENV_CUBE, ENV_SPHERE, COLOUR, X_COLOUR, TEXTURE_DIFFUSE, TEXTURE_LIGHTMAP, TEXTURE_BUMPMAP, FORCE_OPAQUE, NOOP }

enum	Blend { BLEND_SRC_ALPHA, BLEND_DST_ALPHA, BLEND_ZERO, BLEND_ONE, BLEND_MULTIPLY, BLEND_IGNORED }

Public Member Functions
	ShaderDescriptor ()

	~ShaderDescriptor ()

void	declareInput (ShaderDescriptor::Input input)

void	declareSampler (ShaderDescriptor::Sampler sampler, ShaderDescriptor::SamplerType type)

void	declareUniform (ShaderDescriptor::Uniform uniform)

void	connect (ShaderDescriptor::Sampler sampler, ShaderDescriptor::Input input, ShaderDescriptor::Action action)
	Connect an input to a sampler and an action. More...

void	addPass (ShaderDescriptor::Action action, ShaderDescriptor::Blend blend)

void	build (bool isGL3, Common::UString &v_string, Common::UString &f_string)

void	clear ()
	Clear shader descriptor information. More...

void	genName (Common::UString &n_string)
	Generate a name to asscoiate with the current description. More...

Private Attributes
std::vector< Input >	_inputDescriptors

std::vector< SamplerDescriptor >	_samplerDescriptors

std::vector< UniformDescriptor >	_uniformDescriptors

std::vector< Connector >	_connectors

std::vector< Pass >	_passes

Detailed Description

Definition at line 46 of file shaderbuilder.h.

Member Enumeration Documentation

◆ Action

enum Graphics::Shader::ShaderDescriptor::Action

Enumerator
ENV_CUBE
ENV_SPHERE
COLOUR	Uniform variable colour information.
X_COLOUR	Per-vertex colour information.
TEXTURE_DIFFUSE
TEXTURE_LIGHTMAP
TEXTURE_BUMPMAP
FORCE_OPAQUE
NOOP

Definition at line 99 of file shaderbuilder.h.

◆ Blend

enum Graphics::Shader::ShaderDescriptor::Blend

Enumerator
BLEND_SRC_ALPHA
BLEND_DST_ALPHA
BLEND_ZERO
BLEND_ONE
BLEND_MULTIPLY	Not really blending, but component-wise multiply.
BLEND_IGNORED	Blending not applicable to the component.

Definition at line 112 of file shaderbuilder.h.

◆ Input

enum Graphics::Shader::ShaderDescriptor::Input

< Vertex shader input data. Each should have a corresponding output.

Enumerator
INPUT_POSITION0
INPUT_POSITION1
INPUT_POSITION2
INPUT_POSITION3
INPUT_NORMAL0
INPUT_NORMAL1
INPUT_NORMAL2
INPUT_NORMAL3
INPUT_UV0
INPUT_UV1
INPUT_UV0_MATRIX	Same as INPUT_UV0, but specifies input matrix too.
INPUT_UV1_MATRIX	Same as INPUT_UV1, but specifies input matrix too.
INPUT_UV_CUBE	Not strictly speaking an input, but generated for an output.
INPUT_UV_SPHERE	Not strictly speaking an input, but generated for an output.
INPUT_COLOUR

Definition at line 50 of file shaderbuilder.h.

◆ Sampler

enum Graphics::Shader::ShaderDescriptor::Sampler

Enumerator
SAMPLER_TEXTURE_0
SAMPLER_TEXTURE_1
SAMPLER_TEXTURE_2
SAMPLER_TEXTURE_3
SAMPLER_TEXTURE_4
SAMPLER_TEXTURE_5
SAMPLER_TEXTURE_6
SAMPLER_TEXTURE_7
SAMPLER_TEXTURE_NONE

Definition at line 69 of file shaderbuilder.h.

◆ SamplerType

enum Graphics::Shader::ShaderDescriptor::SamplerType

Enumerator
SAMPLER_1D
SAMPLER_2D
SAMPLER_3D
SAMPLER_CUBE

Definition at line 82 of file shaderbuilder.h.

◆ Uniform

enum Graphics::Shader::ShaderDescriptor::Uniform

Enumerator
UNIFORM_V_OBJECT_MODELVIEW_MATRIX
UNIFORM_V_PROJECTION_MATRIX
UNIFOM_V_MODELVIEW_MATRIX
UNIFORM_F_ALPHA
UNIFORM_F_COLOUR

Definition at line 90 of file shaderbuilder.h.

Constructor & Destructor Documentation

◆ ShaderDescriptor()

Graphics::Shader::ShaderDescriptor::ShaderDescriptor ( )

Definition at line 36 of file shaderbuilder.cpp.

◆ ~ShaderDescriptor()

Graphics::Shader::ShaderDescriptor::~ShaderDescriptor ( )

Definition at line 39 of file shaderbuilder.cpp.

Member Function Documentation

◆ addPass()

void Graphics::Shader::ShaderDescriptor::addPass	(	ShaderDescriptor::Action	action,
		ShaderDescriptor::Blend	blend
	)

Definition at line 67 of file shaderbuilder.cpp.

References _passes, and pass.

Referenced by Graphics::Aurora::ModelNode_Witcher::buildMaterial(), Graphics::Aurora::ModelNode::buildMaterial(), and Graphics::Shader::ShaderManager::init().

Here is the caller graph for this function:

◆ build()

void Graphics::Shader::ShaderDescriptor::build	(	bool	isGL3,
		Common::UString &	v_string,
		Common::UString &	f_string
	)

Todo:: Declare required inputs here. For vertex shaders this means the camera view and transform matrices, and the appropriate object transform matrix. Fragment shaders have an alpha value and fraggle/froggle for building the final colour output.

Extra uniform declarations. These will go into either vertex or fragment headers as appropriate.

Vertex shader input declarations.

First of all, the speceified inputs need declaring. If they're not actually used, then it doesn't matter - shader compiler will include the reference for binding purposes, but won't do anything with the data. Re-declarations will cause everything to fail, but that's the caller's problem.

Vertex shaders have an easier time of it, as nothing complicated is really done. So a good deal of the vertex shader body can be added while going over the input descriptors now, rather than having to loop over them again later on.

Below may need tweaking later. It would be better to be able to map an input to an action, such as texture transform, with the output from that action fed into an appropriate shader output. Of course, what's being written here is essentially a "null action" (map input directly to output), with some hard coded exceptions. Everything later can be an action: input to view modification transform input to texture transform etc...

Fragment shader sampler declarations.

Now declare samplers. Actually this needs to be done as part of the connection phase because the sampler type is attached there, and generic sampler declaration isn't supported. Instead, prepare a string for the declaration now, and prepend the appropriate type later.

Fragment shader sampler uv coordinate mapping.

Inputs and sampler declared. Now they need to be connected. Essentially this next step just maps an input name to something the sampler can assume exists, by using some simple macro definitions. So sample_0_id will always use sample_0_coords for sampling, but that name can map to any input. The same input can be used for multiple samplers, but the same sampler cannot use multiple inputs (which makes sense if you think about it hard enough).

Samplers (which have known macro names)

All declarations should now be in place.

Wrap up the shaders.

So now there are strings for vertex and fragment shaders, header and body. Shaders, transform and rollout.

Definition at line 74 of file shaderbuilder.cpp.

References _connectors, _inputDescriptors, _passes, _samplerDescriptors, _uniformDescriptors, BLEND_DST_ALPHA, BLEND_IGNORED, BLEND_MULTIPLY, BLEND_ONE, BLEND_SRC_ALPHA, BLEND_ZERO, COLOUR, ENV_CUBE, ENV_SPHERE, FORCE_OPAQUE, INPUT_COLOUR, INPUT_NORMAL0, INPUT_NORMAL1, INPUT_NORMAL2, INPUT_NORMAL3, INPUT_POSITION0, INPUT_POSITION1, INPUT_POSITION2, INPUT_POSITION3, INPUT_UV0, INPUT_UV0_MATRIX, INPUT_UV1, INPUT_UV1_MATRIX, INPUT_UV_CUBE, INPUT_UV_SPHERE, NOOP, SAMPLER_1D, SAMPLER_2D, SAMPLER_3D, SAMPLER_CUBE, SAMPLER_TEXTURE_0, SAMPLER_TEXTURE_1, SAMPLER_TEXTURE_2, SAMPLER_TEXTURE_3, SAMPLER_TEXTURE_4, SAMPLER_TEXTURE_5, SAMPLER_TEXTURE_6, SAMPLER_TEXTURE_7, SAMPLER_TEXTURE_NONE, TEXTURE_BUMPMAP, TEXTURE_DIFFUSE, TEXTURE_LIGHTMAP, UNIFOM_V_MODELVIEW_MATRIX, UNIFORM_F_ALPHA, UNIFORM_F_COLOUR, UNIFORM_V_OBJECT_MODELVIEW_MATRIX, UNIFORM_V_PROJECTION_MATRIX, and X_COLOUR.

Referenced by Graphics::Aurora::ModelNode_Witcher::buildMaterial(), Graphics::Aurora::ModelNode::buildMaterial(), and Graphics::Shader::ShaderManager::init().

Here is the caller graph for this function:

◆ clear()

void Graphics::Shader::ShaderDescriptor::clear ( )

Clear shader descriptor information.

Reset everything to default state.

Definition at line 596 of file shaderbuilder.cpp.

References _connectors, _inputDescriptors, _passes, _samplerDescriptors, and _uniformDescriptors.

Referenced by Graphics::Shader::ShaderManager::init().

Here is the caller graph for this function:

◆ connect()

void Graphics::Shader::ShaderDescriptor::connect	(	ShaderDescriptor::Sampler	sampler,
		ShaderDescriptor::Input	input,
		ShaderDescriptor::Action	action
	)

Connect an input to a sampler and an action.

Parameters

sampler	Sampler to associate with the input and the action. Use SAMPLER_TEXTURE_NONE if this is to be ignored.
input	Associate a sampler with an input to be used for UVW coordinates.
action	Associate the connection to an action to be performed with them.

Definition at line 59 of file shaderbuilder.cpp.

References _connectors, Graphics::Shader::ShaderDescriptor::Connector::action, Graphics::Shader::ShaderDescriptor::Connector::input, and Graphics::Shader::ShaderDescriptor::Connector::sampler.

Referenced by Graphics::Aurora::ModelNode_Witcher::buildMaterial(), Graphics::Aurora::ModelNode::buildMaterial(), and Graphics::Shader::ShaderManager::init().

Here is the caller graph for this function:
