xoreos: Engines::NWN2::TRXFile Class Reference

xoreos 0.0.5

Loader for TRX, baked terrain files, found in Neverwinter Nights 2. More...

#include <trxfile.h>

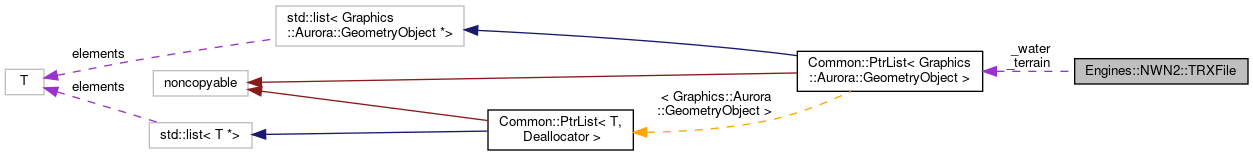

Collaboration diagram for Engines::NWN2::TRXFile:

Collaboration graph

[legend]

Classes
struct	Packet
	A packet within a TRX file. More...

Public Member Functions
	TRXFile (const Common::UString &resRef)

	~TRXFile ()

void	show ()

void	hide ()

Private Types
typedef Common::PtrList< Graphics::Aurora::GeometryObject >	ObjectList

Private Member Functions
void	load (Common::SeekableReadStream &trx)

void	loadDirectory (Common::SeekableReadStream &trx, std::vector< Packet > &packets)
	Load the packets directory. More...

void	loadPackets (Common::SeekableReadStream &trx, std::vector< Packet > &packets)
	Load the packets. More...

void	loadPacket (Common::SeekableReadStream &trx, Packet &packet)
	Load one packets. More...

void	loadTRWH (Common::SeekableReadStream &trx, Packet &packet)
	Load TRWH (size information) packets. More...

void	loadTRRN (Common::SeekableReadStream &trx, Packet &packet)
	Load TRRN (terrain tile) packets. More...

void	loadWATR (Common::SeekableReadStream &trx, Packet &packet)
	Load WATR (water tile) packets. More...

void	loadASWM (Common::SeekableReadStream &trx, Packet &packet)
	Load ASWM (walk mesh) packets. More...

Private Attributes
bool	_visible

uint32	_width

uint32	_height

ObjectList	_terrain

ObjectList	_water

Detailed Description

Loader for TRX, baked terrain files, found in Neverwinter Nights 2.

While indoor areas in Neverwinter Nights 2 use tiles similar to those found in the first Neverwinter Nights game, outdoor areas use a more free-form and dynamic terrain.

A TRX file consists of 4 "packet" types:

TRWH packets, containing the size of the terrain
TRRN packets, with a ground mesh and grass descriptions
WATR packets, with a mesh for a stretch of water (sea, river, ...)
ASWM packets, with a mesh defining a region creatures can walk on

Usually, there should be exactly one TRWH packet, followed by an arbitrary number of TRRN, WATR and ASWM packets. TRRN packets are divided into tiles, rectangular areas for a piece of the ground, while WATR packets divide the bodies of water in more natural ways.

Definition at line 66 of file trxfile.h.

Member Typedef Documentation

◆ ObjectList

typedef Common::PtrList<Graphics::Aurora::GeometryObject> Engines::NWN2::TRXFile::ObjectList

private

Definition at line 82 of file trxfile.h.

Constructor & Destructor Documentation

◆ TRXFile()

Engines::NWN2::TRXFile::TRXFile ( const Common::UString & resRef )

Definition at line 46 of file trxfile.cpp.

References Common::StackException::add(), Common::UString::c_str(), Aurora::kFileTypeTRX, load(), and ResMan.

Here is the call graph for this function:

◆ ~TRXFile()

Engines::NWN2::TRXFile::~TRXFile ( )

Definition at line 60 of file trxfile.cpp.

References hide().

Here is the call graph for this function:

Member Function Documentation

◆ hide()

void Engines::NWN2::TRXFile::hide ( )

Definition at line 80 of file trxfile.cpp.

References _terrain, _visible, _water, and GfxMan.

Referenced by ~TRXFile().

Here is the caller graph for this function:

◆ load()

void Engines::NWN2::TRXFile::load ( Common::SeekableReadStream & trx )

private

Definition at line 96 of file trxfile.cpp.

References Common::debugTag(), loadDirectory(), loadPackets(), MKTAG, Common::SeekableReadStream::pos(), Common::ReadStream::readUint16LE(), Common::ReadStream::readUint32BE(), Common::ReadStream::readUint32LE(), and Common::SeekableReadStream::size().

Referenced by TRXFile().

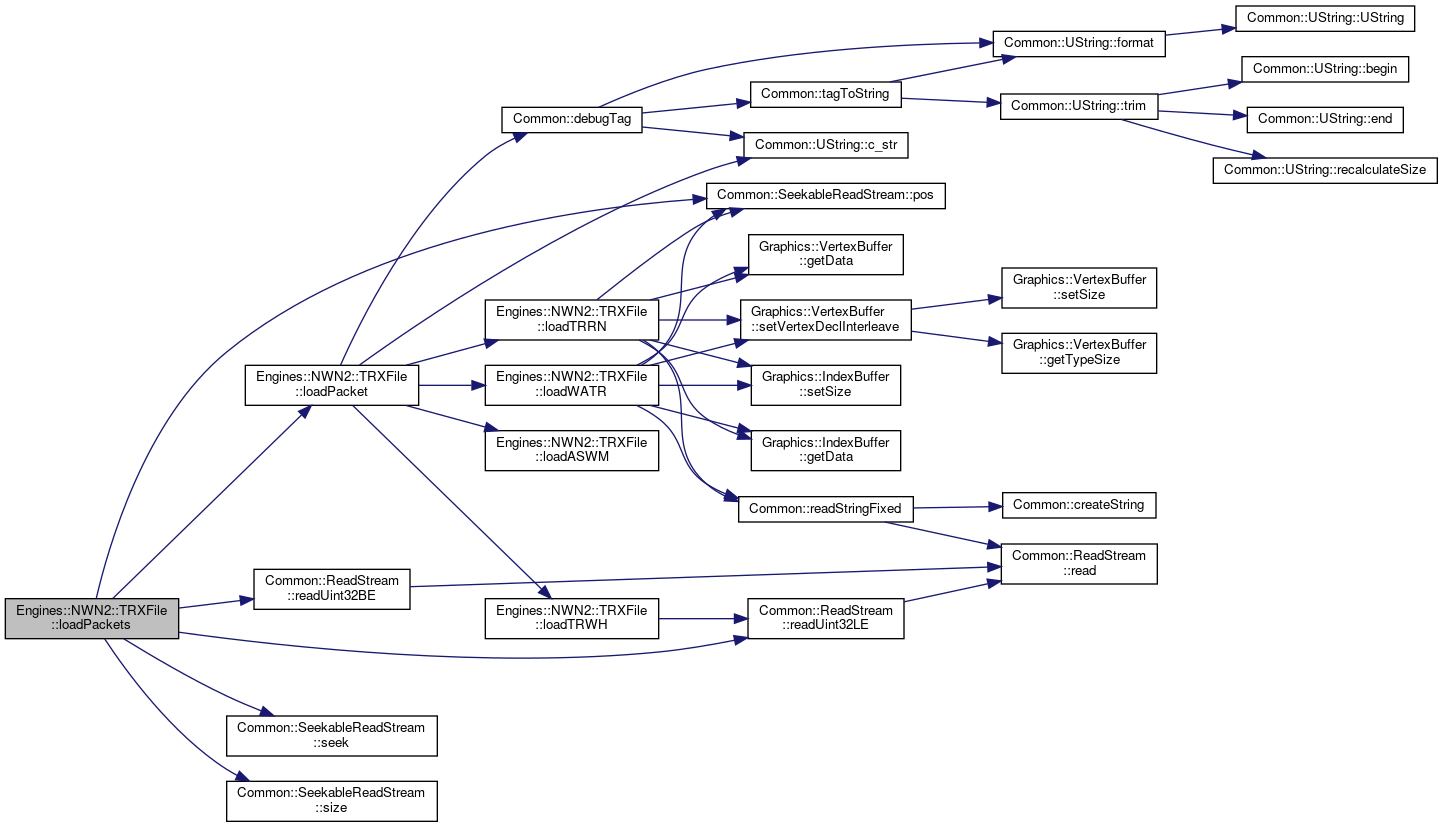

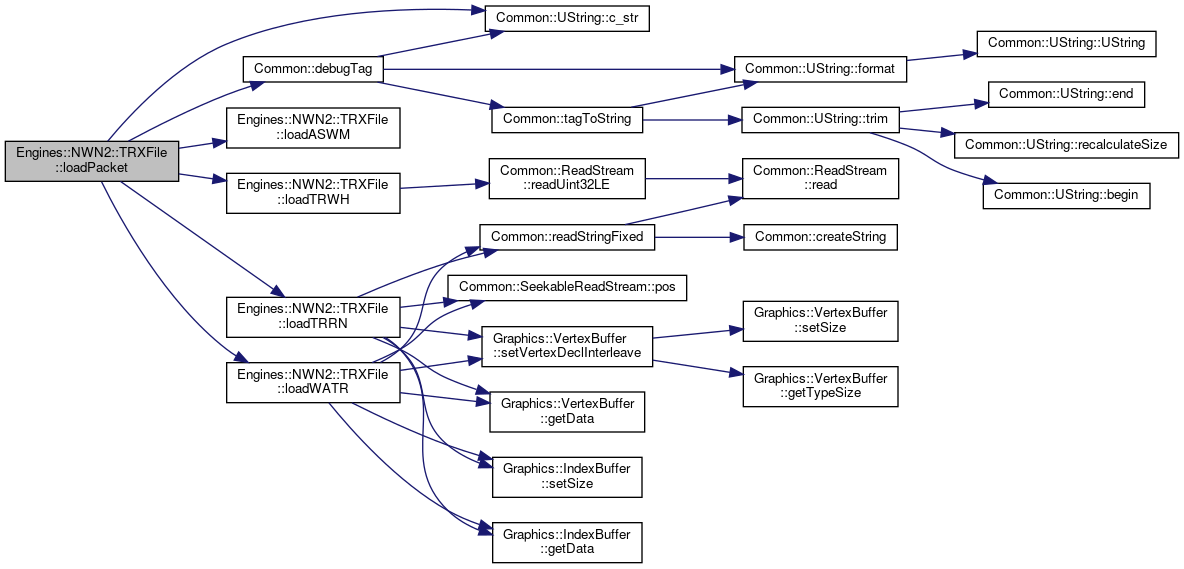

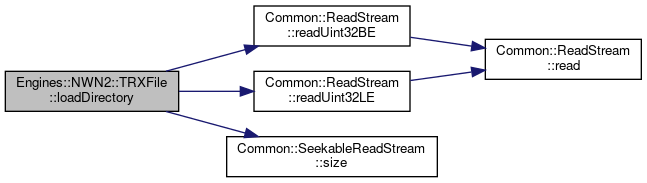

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadASWM()

void Engines::NWN2::TRXFile::loadASWM	(	Common::SeekableReadStream &	trx,
		Packet &	packet
	)

private

Load ASWM (walk mesh) packets.

Definition at line 321 of file trxfile.cpp.

Referenced by loadPacket().

Here is the caller graph for this function:

◆ loadDirectory()

void Engines::NWN2::TRXFile::loadDirectory	(	Common::SeekableReadStream &	trx,
		std::vector< Packet > &	packets
	)

private

Load the packets directory.

Definition at line 117 of file trxfile.cpp.

References Common::ReadStream::readUint32BE(), Common::ReadStream::readUint32LE(), and Common::SeekableReadStream::size().

Referenced by load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadPacket()

void Engines::NWN2::TRXFile::loadPacket	(	Common::SeekableReadStream &	trx,
		Packet &	packet
	)

private

Load one packets.

Definition at line 143 of file trxfile.cpp.

References Common::UString::c_str(), Common::debugTag(), loadASWM(), loadTRRN(), loadTRWH(), loadWATR(), MKTAG, and Engines::NWN2::TRXFile::Packet::type.

Referenced by loadPackets().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadPackets()

void Engines::NWN2::TRXFile::loadPackets	(	Common::SeekableReadStream &	trx,
		std::vector< Packet > &	packets
	)

private

Load the packets.

Definition at line 127 of file trxfile.cpp.

References loadPacket(), Common::SeekableReadStream::pos(), Common::ReadStream::readUint32BE(), Common::ReadStream::readUint32LE(), Common::SeekableReadStream::seek(), and Common::SeekableReadStream::size().

Referenced by load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadTRRN()

void Engines::NWN2::TRXFile::loadTRRN	(	Common::SeekableReadStream &	trx,
		Packet &	packet
	)

private

Load TRRN (terrain tile) packets.

Definition at line 166 of file trxfile.cpp.

References _terrain, Graphics::IndexBuffer::getData(), Graphics::VertexBuffer::getData(), Common::kEncodingASCII, Common::SeekableReadStream::pos(), Common::readStringFixed(), Graphics::IndexBuffer::setSize(), Graphics::VertexBuffer::setVertexDeclInterleave(), Engines::NWN2::TRXFile::Packet::size, Graphics::VCOLOR, Graphics::VNORMAL, and Graphics::VPOSITION.

Referenced by loadPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadTRWH()

void Engines::NWN2::TRXFile::loadTRWH	(	Common::SeekableReadStream &	trx,
		Packet &	packet
	)

private

Load TRWH (size information) packets.

Definition at line 156 of file trxfile.cpp.

References _height, _width, Common::ReadStream::readUint32LE(), and Engines::NWN2::TRXFile::Packet::size.

Referenced by loadPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadWATR()

void Engines::NWN2::TRXFile::loadWATR	(	Common::SeekableReadStream &	trx,
		Packet &	packet
	)

private

Load WATR (water tile) packets.

Definition at line 245 of file trxfile.cpp.

References _water, Graphics::IndexBuffer::getData(), Graphics::VertexBuffer::getData(), Common::kEncodingASCII, Common::SeekableReadStream::pos(), Common::readStringFixed(), Graphics::IndexBuffer::setSize(), Graphics::VertexBuffer::setVertexDeclInterleave(), Engines::NWN2::TRXFile::Packet::size, Graphics::VCOLOR, and Graphics::VPOSITION.

Referenced by loadPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ show()

void Engines::NWN2::TRXFile::show ( )

Definition at line 64 of file trxfile.cpp.

References _terrain, _visible, _water, and GfxMan.

Member Data Documentation

◆ _height

uint32 Engines::NWN2::TRXFile::_height

private

Definition at line 88 of file trxfile.h.

Referenced by loadTRWH().

◆ _terrain

ObjectList Engines::NWN2::TRXFile::_terrain

private

Definition at line 90 of file trxfile.h.

Referenced by hide(), loadTRRN(), and show().

◆ _visible

bool Engines::NWN2::TRXFile::_visible

private

Definition at line 85 of file trxfile.h.

Referenced by hide(), and show().

◆ _water

ObjectList Engines::NWN2::TRXFile::_water

private

Definition at line 91 of file trxfile.h.

Referenced by hide(), loadWATR(), and show().

◆ _width

uint32 Engines::NWN2::TRXFile::_width

private

Definition at line 87 of file trxfile.h.

Referenced by loadTRWH().

The documentation for this class was generated from the following files:

src/engines/nwn2/trxfile.h
src/engines/nwn2/trxfile.cpp
