Class for parsing gfx files. More...

#include <gfxfile.h>

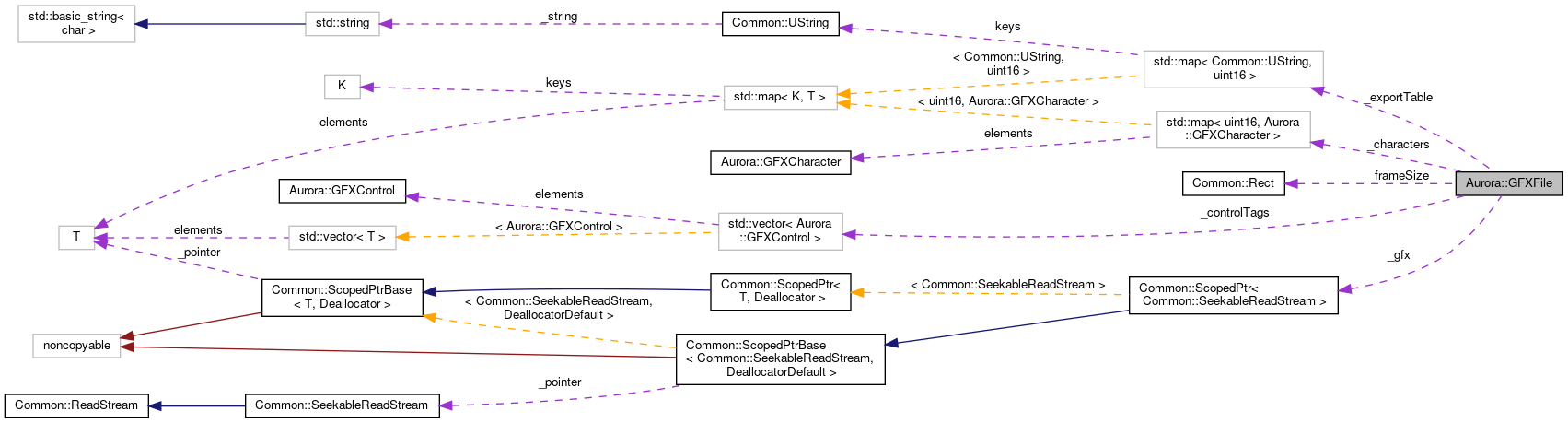

Collaboration diagram for Aurora::GFXFile:

[legend]

Classes
struct	RecordHeader
	The standard header of every tag. More...

Public Member Functions
	GFXFile (const Common::UString &resref, Aurora::ActionScript::AVM &avm)
	Open a gfx file specified by the reference and used with the specified avm. More...

float	getFrameRate ()
	Get the framerate for this gfx file. More...

uint16	getExportedAssetId (const Common::UString &id)
	Get the corresponding character id for an exported asset. More...

GFXCharacter	getCharacter (uint16 id)
	Get a character by id. More...

std::vector< GFXControl >	getControls ()
	Get all root controls. More...

Private Member Functions
void	load (Common::SeekableReadStream *gfx, Aurora::ActionScript::AVM &avm)

void	readHeader ()
	Load all header information. More...

void	readDefineShape (byte version)
	Read a DefineShape tag. More...

void	readBackgroundColor ()
	Read the background color tag. More...

void	readExportAssets ()
	Read an export assets tag. More...

void	readImportAssets (ActionScript::AVM &avm)
	Read an import assets tag. More...

void	readFileAttributes ()
	Read the file attributes tag. More...

void	readDefineSprite ()
	Read a define sprite tag. More...

GFXControl	readPlaceObject (byte version=1)
	Read a place object tag. More...

void	readDefineFont ()
	Read a font definition version 3. More...

void	readDefineEditText ()
	Read an edit text character. More...

void	readInitAction (ActionScript::AVM &avm)
	Read a DoInitAction tag. More...

Aurora::ActionScript::ASBuffer *	readAction ()
	Read a DoAction tag. More...

void	readGFXExporterInfo (RecordHeader header)
	Load the information about the gfx exporter. More...

void	readGFXDefineExternalImage (RecordHeader header, byte version=0)
	Load an external image reference. More...

RecordHeader	readRecordHeader ()
	Read a record header for the next tag. More...

Common::Rect	readRectangle ()
	Read a basic rectangle type from the gfx file. More...

glm::mat3x2	readMatrix ()
	Read a matrix. More...

glm::u8vec3	readRGB ()
	Read an RGB color record. More...

glm::u8vec4	readRGBA ()
	Reag an RGBA color record. More...

std::vector< GFXCharacter::FillStyle >	readFillStyleArray (byte version)
	Read an fillstyle array. More...

GFXCharacter::FillStyle	readFillStyle (byte version)
	Read an FillStyle record. More...

std::vector< GFXCharacter::LineStyle >	readLineStyleArray (byte version)
	Read a line style array. More...

GFXCharacter::LineStyle	readLineStyle (byte version)
	Read a line style. More...

GFXControl::ColorTransform	readColorTransform ()
	Read a color transform. More...

void	readFocalGradient (byte version)
	Read a focal gradient record. More...

GFXCharacter::GradientRecord	readGradientRecord (byte version)
	Read a gradient record. More...

std::vector< GFXCharacter::ShapeRecord >	readShape (byte version, bool withStyle)
	Read a shape. More...

Common::UString	readNullTerminatedString ()
	Read a null terminated string. More...

Common::UString	readLengthPrefixedString ()
	Read a byte length prefixed string. More...

int32	read2ComplementValue (Common::BitStream &bitStream, size_t n)
	Read a 2's complement value. More...

Private Attributes
std::map< Common::UString, uint16 >	_exportTable
	Every exported character id with the associated export name. More...

std::map< uint16, GFXCharacter >	_characters
	Every character associated with it's character id. More...

std::vector< GFXControl >	_controlTags
	All root control tags. More...

Common::ScopedPtr< Common::SeekableReadStream >	_gfx
	The read stream of this gfx file. More...

Common::Rect	_frameSize
	The standard bounds of the ui in this file. More...

float	_frameRate
	The frame rate, how fast this gui should be played. More...

unsigned short	_frameCount
	The count of frames in this gfx file. More...

Detailed Description

Class for parsing gfx files.

This class parses a gfx file and and extracts it's controls and characters to a usable state.

Definition at line 348 of file gfxfile.h.

Constructor & Destructor Documentation

◆ GFXFile()

Aurora::GFXFile::GFXFile	(	const Common::UString &	resref,
		Aurora::ActionScript::AVM &	avm
	)

Open a gfx file specified by the reference and used with the specified avm.

Parameters

resref	the resref of the gfx file
avm	The AVM that should be used throughout the loading process

Definition at line 198 of file gfxfile.cpp.

References Aurora::kFileTypeGFX, load(), and ResMan.

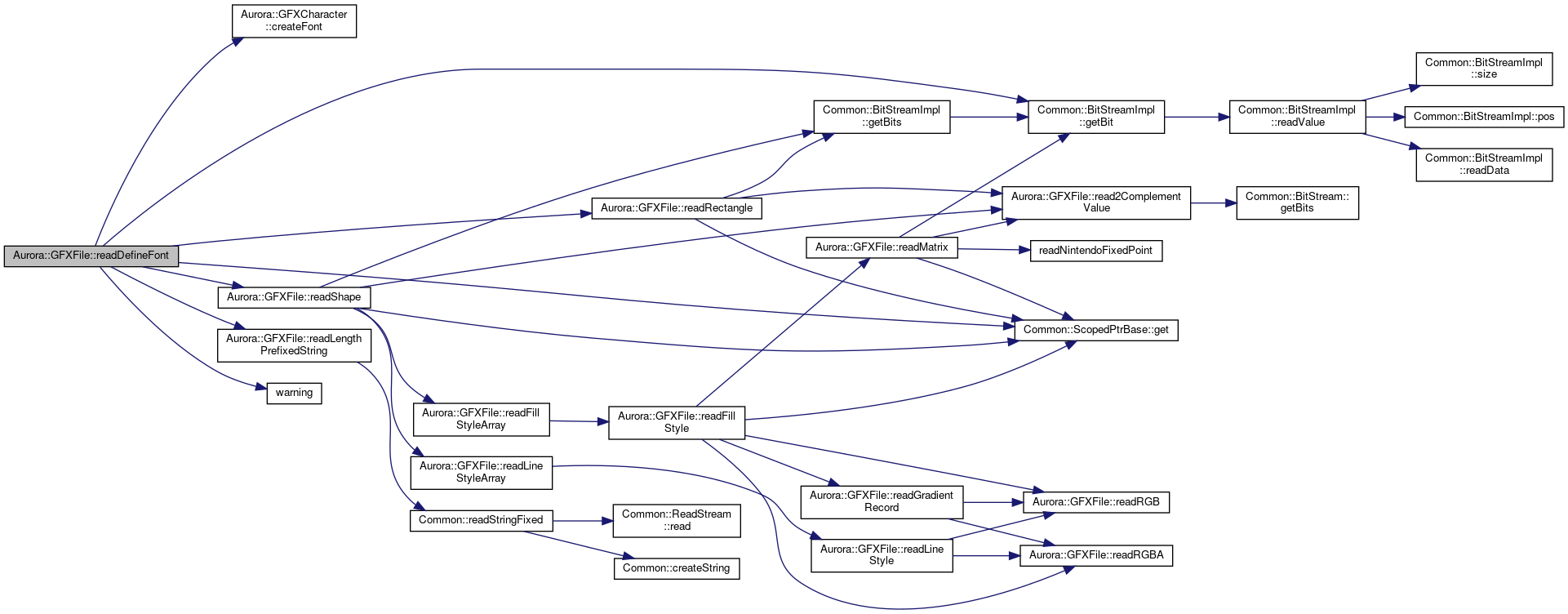

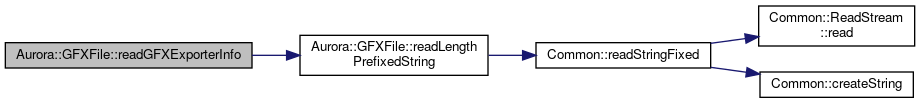

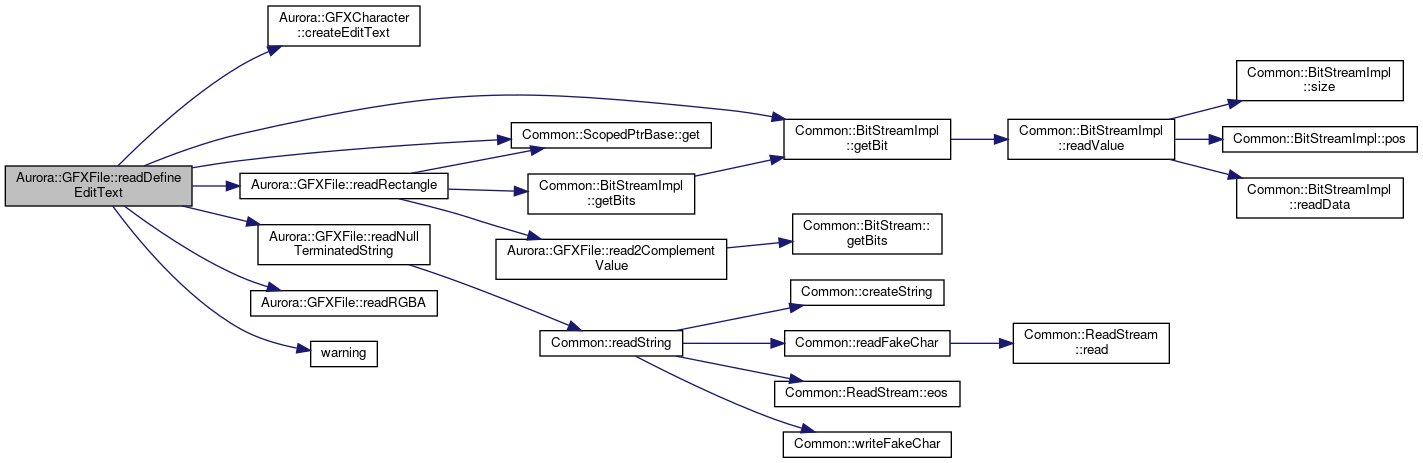

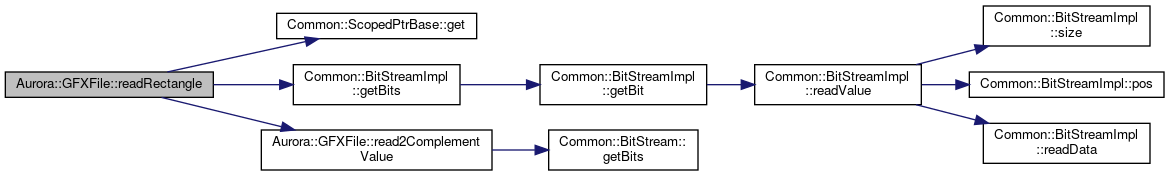

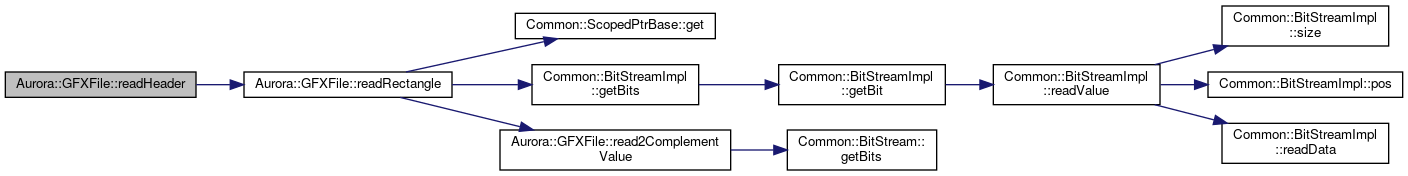

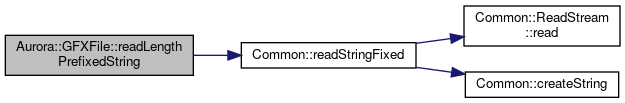

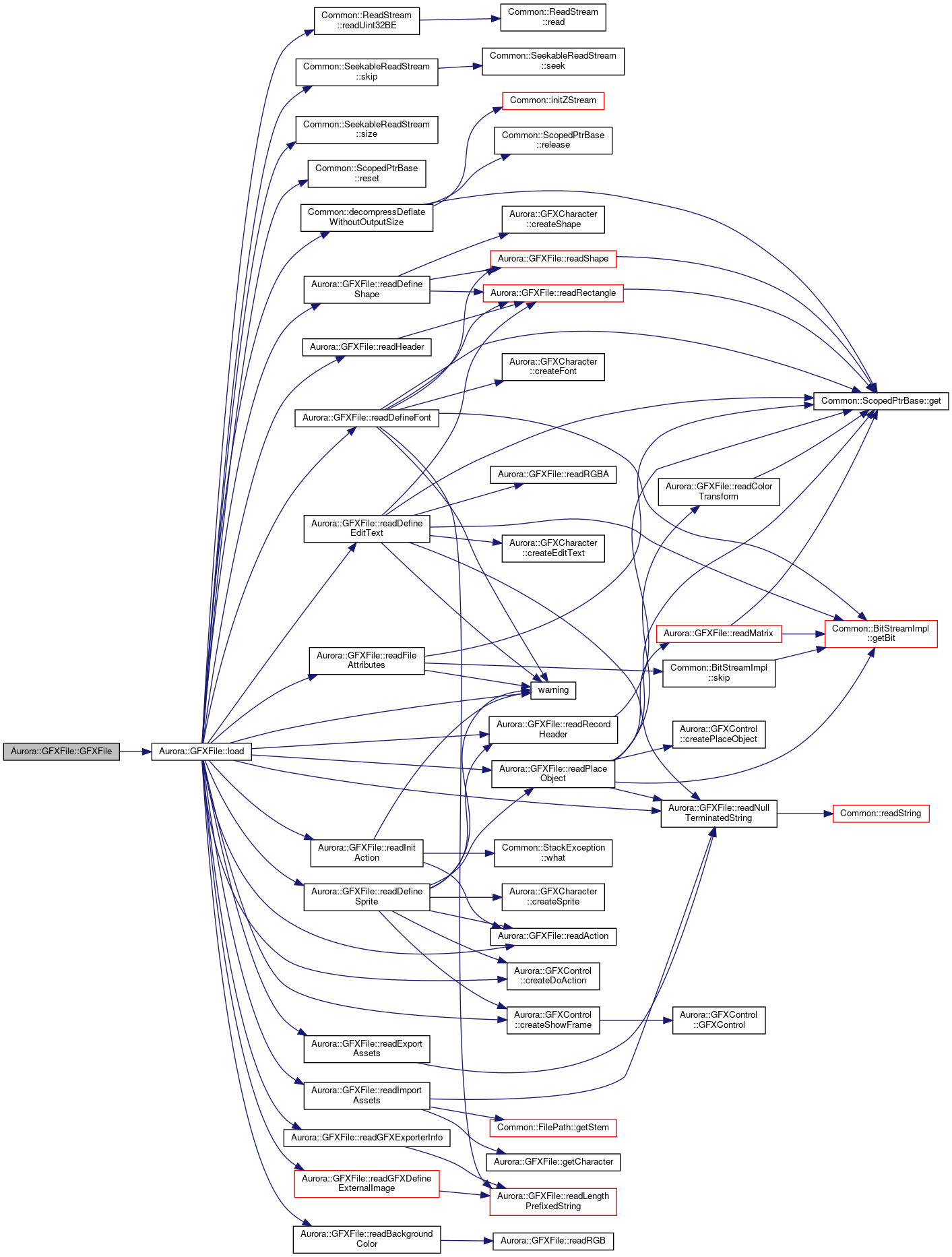

Here is the call graph for this function:

Member Function Documentation

◆ getCharacter()

GFXCharacter Aurora::GFXFile::getCharacter ( uint16 id )

Get a character by id.

Definition at line 214 of file gfxfile.cpp.

References _characters.

Referenced by readImportAssets().

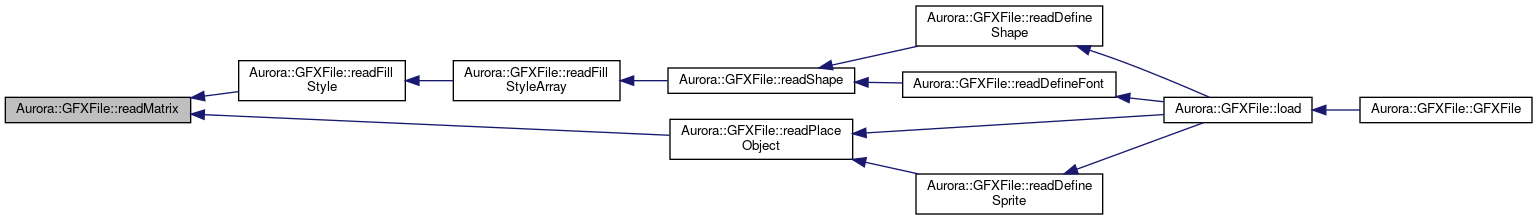

Here is the caller graph for this function:

◆ getControls()

std::vector<GFXControl> Aurora::GFXFile::getControls ( )

inline

Get all root controls.

Definition at line 366 of file gfxfile.h.

References _controlTags.

◆ getExportedAssetId()

uint16 Aurora::GFXFile::getExportedAssetId ( const Common::UString & id )

Get the corresponding character id for an exported asset.

Definition at line 206 of file gfxfile.cpp.

References _exportTable.

◆ getFrameRate()

float Aurora::GFXFile::getFrameRate ( )

inline

Get the framerate for this gfx file.

Definition at line 358 of file gfxfile.h.

References _frameRate.

◆ load()

void Aurora::GFXFile::load	(	Common::SeekableReadStream *	gfx,
		Aurora::ActionScript::AVM &	avm
	)

private

Definition at line 222 of file gfxfile.cpp.

References _controlTags, _gfx, Aurora::GFXControl::DoAction::asBuffer, Aurora::GFXControl::createDoAction(), Aurora::GFXControl::createShowFrame(), Common::decompressDeflateWithoutOutputSize(), Aurora::kCFXID, Aurora::kTagTypeDefineEditText, Aurora::kTagTypeDefineFont3, Aurora::kTagTypeDefineShape, Aurora::kTagTypeDefineShape2, Aurora::kTagTypeDefineShape3, Aurora::kTagTypeDefineSprite, Aurora::kTagTypeDoAction, Aurora::kTagTypeDoInitAction, Aurora::kTagTypeEnd, Aurora::kTagTypeExportAssets, Aurora::kTagTypeFileAttributes, Aurora::kTagTypeFrameLabel, Aurora::kTagTypeGFXDefineExternalImage, Aurora::kTagTypeGFXDefineExternalImage2, Aurora::kTagTypeGFXExporterInfo, Aurora::kTagTypeImportAssets2, Aurora::kTagTypePlaceObject2, Aurora::kTagTypeSetBackgroundColor, Aurora::kTagTypeShowFrame, Common::kWindowBitsMax, readAction(), readBackgroundColor(), readDefineEditText(), readDefineFont(), readDefineShape(), readDefineSprite(), readExportAssets(), readFileAttributes(), readGFXDefineExternalImage(), readGFXExporterInfo(), readHeader(), readImportAssets(), readInitAction(), readNullTerminatedString(), readPlaceObject(), readRecordHeader(), Common::ReadStream::readUint32BE(), Common::ScopedPtrBase< T, Deallocator >::reset(), Common::SeekableReadStream::size(), Common::SeekableReadStream::skip(), Aurora::GFXFile::RecordHeader::tagLength, Aurora::GFXFile::RecordHeader::tagType, and warning().

Referenced by GFXFile().

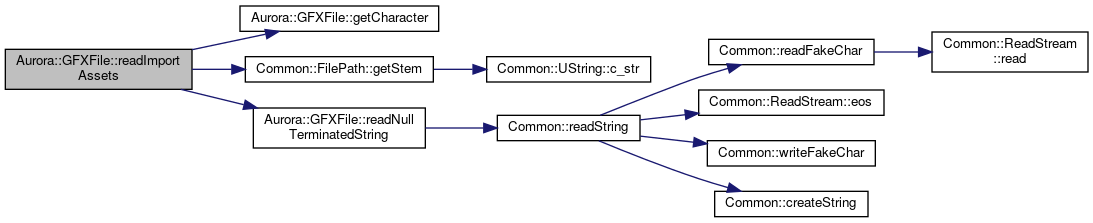

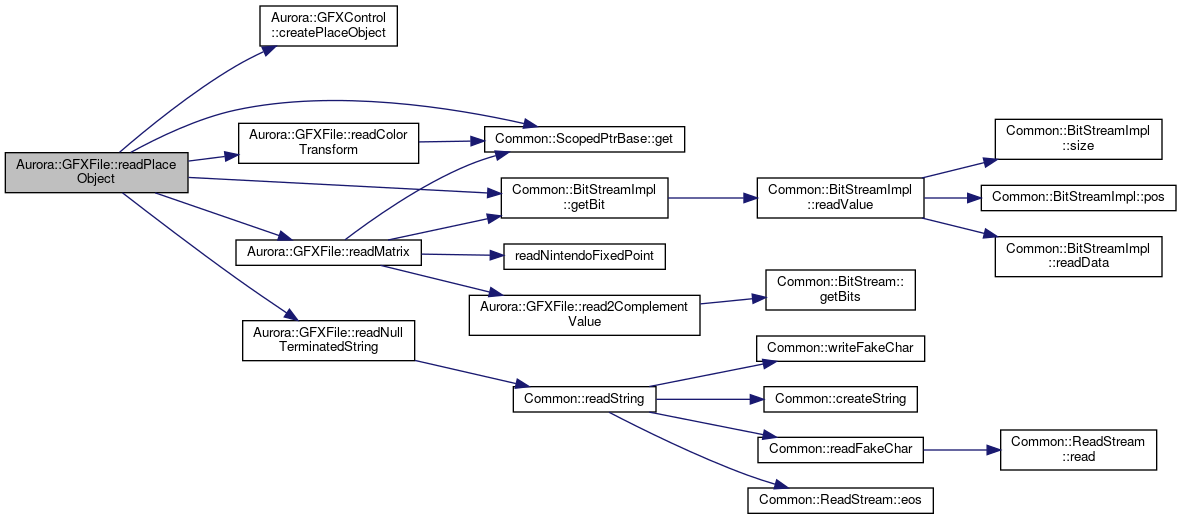

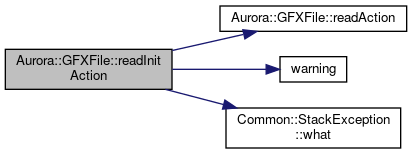

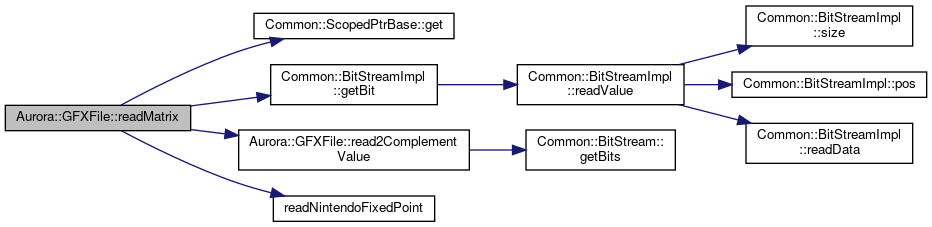

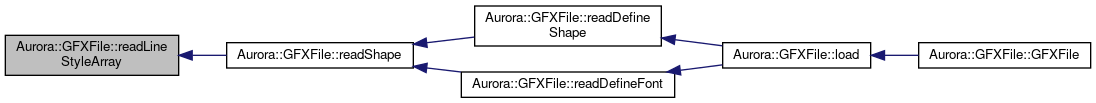

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read2ComplementValue()

int32 Aurora::GFXFile::read2ComplementValue	(	Common::BitStream &	bitStream,
		size_t	n
	)

private

Read a 2's complement value.

Definition at line 1129 of file gfxfile.cpp.

References Common::BitStream::getBits().

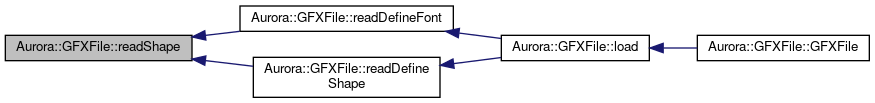

Referenced by readMatrix(), readRectangle(), and readShape().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readAction()

Aurora::ActionScript::ASBuffer * Aurora::GFXFile::readAction ( )

private

Read a DoAction tag.

Definition at line 727 of file gfxfile.cpp.

References _gfx, and Common::SeekableReadStream::kOriginCurrent.

Referenced by load(), readDefineSprite(), and readInitAction().

Here is the caller graph for this function:

◆ readBackgroundColor()

void Aurora::GFXFile::readBackgroundColor ( )

private

Read the background color tag.

Definition at line 341 of file gfxfile.cpp.

References readRGB().

Referenced by load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readColorTransform()

GFXControl::ColorTransform Aurora::GFXFile::readColorTransform ( )

private

Read a color transform.

Definition at line 962 of file gfxfile.cpp.

Referenced by readPlaceObject().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readDefineEditText()

void Aurora::GFXFile::readDefineEditText ( )

private

Read an edit text character.

Definition at line 640 of file gfxfile.cpp.

Referenced by load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readDefineFont()

void Aurora::GFXFile::readDefineFont ( )

private

Read a font definition version 3.

Definition at line 523 of file gfxfile.cpp.

Referenced by load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readDefineShape()

void Aurora::GFXFile::readDefineShape ( byte version )

private

Read a DefineShape tag.

Definition at line 331 of file gfxfile.cpp.

References _characters, _gfx, Aurora::GFXCharacter::Shape::bounds, Aurora::GFXCharacter::createShape(), readRectangle(), readShape(), and Aurora::GFXCharacter::Shape::shapeRecords.

Referenced by load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readDefineSprite()

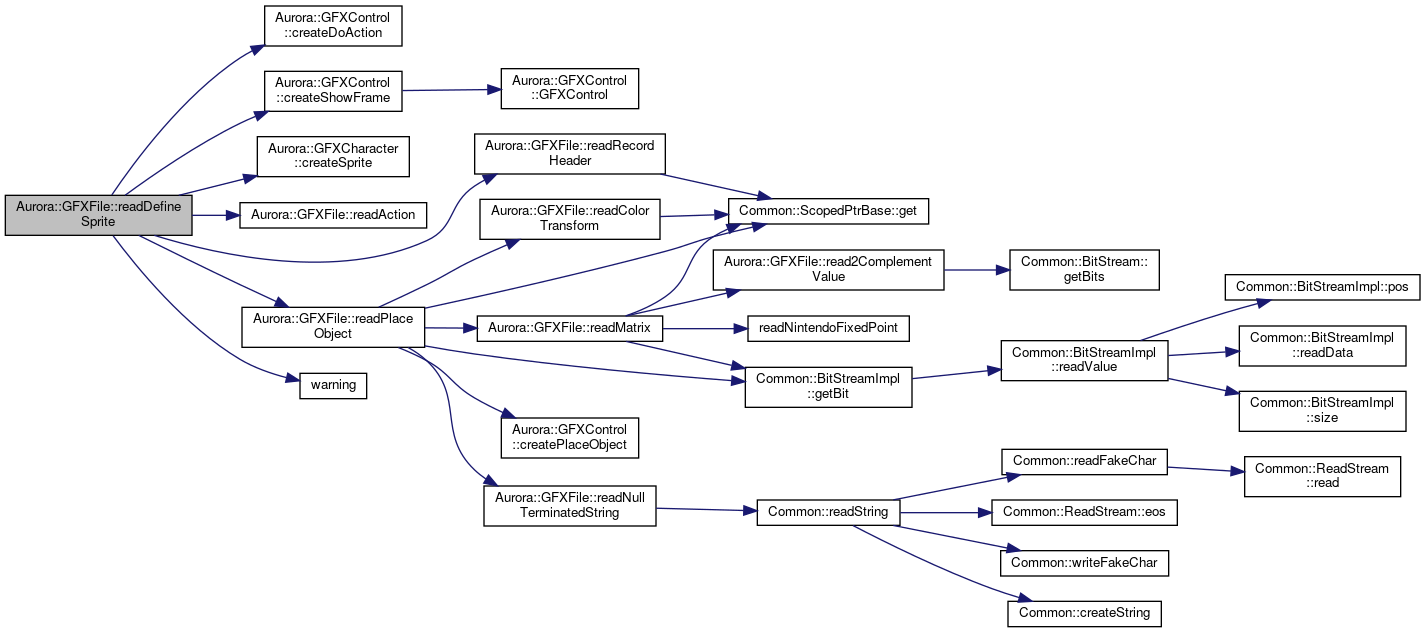

void Aurora::GFXFile::readDefineSprite ( )

private

Read a define sprite tag.

Definition at line 401 of file gfxfile.cpp.

References _characters, _gfx, Aurora::GFXControl::DoAction::asBuffer, Aurora::GFXCharacter::Sprite::controls, Aurora::GFXControl::createDoAction(), Aurora::GFXControl::createShowFrame(), Aurora::GFXCharacter::createSprite(), Aurora::GFXCharacter::Sprite::frameCount, Aurora::kTagTypeDoAction, Aurora::kTagTypeDoInitAction, Aurora::kTagTypeEnd, Aurora::kTagTypeFrameLabel, Aurora::kTagTypePlaceObject, Aurora::kTagTypePlaceObject2, Aurora::kTagTypePlaceObject3, Aurora::kTagTypeRemoveObject, Aurora::kTagTypeRemoveObject2, Aurora::kTagTypeShowFrame, Aurora::kTagTypeSoundStreamBlock, Aurora::kTagTypeSoundStreamHead, Aurora::kTagTypeSoundStreamHead2, Aurora::kTagTypeStartSound, readAction(), readPlaceObject(), readRecordHeader(), Aurora::GFXFile::RecordHeader::tagLength, Aurora::GFXFile::RecordHeader::tagType, and warning().

Referenced by load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readExportAssets()

void Aurora::GFXFile::readExportAssets ( )

private

Read an export assets tag.

Definition at line 345 of file gfxfile.cpp.

References _exportTable, _gfx, and readNullTerminatedString().

Referenced by load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readFileAttributes()

void Aurora::GFXFile::readFileAttributes ( )

private

Read the file attributes tag.

Definition at line 375 of file gfxfile.cpp.

References _gfx, Common::ScopedPtrBase< T, Deallocator >::get(), Common::BitStreamImpl< valueBits, isLE, isMSB2LSB >::skip(), and warning().

Referenced by load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readFillStyle()

GFXCharacter::FillStyle Aurora::GFXFile::readFillStyle ( byte version )

private

Read an FillStyle record.

Definition at line 886 of file gfxfile.cpp.

References _gfx, Aurora::GFXCharacter::Fill::color, Common::ScopedPtrBase< T, Deallocator >::get(), Aurora::GFXCharacter::Bitmap::id, Aurora::GFXCharacter::Gradient::interpolationMode, Aurora::GFXCharacter::Gradient::matrix, Aurora::GFXCharacter::Bitmap::matrix, readGradientRecord(), readMatrix(), readRGB(), readRGBA(), Aurora::GFXCharacter::Gradient::records, Aurora::GFXCharacter::Gradient::spreadMode, Aurora::GFXCharacter::FillStyle::type, and Aurora::GFXCharacter::FillStyle::value.

Referenced by readFillStyleArray().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readFillStyleArray()

std::vector< GFXCharacter::FillStyle > Aurora::GFXFile::readFillStyleArray ( byte version )

private

Read an fillstyle array.

Definition at line 873 of file gfxfile.cpp.

References _gfx, and readFillStyle().

Referenced by readShape().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readFocalGradient()

void Aurora::GFXFile::readFocalGradient ( byte version )

private

Read a focal gradient record.

Definition at line 989 of file gfxfile.cpp.

◆ readGFXDefineExternalImage()

void Aurora::GFXFile::readGFXDefineExternalImage	(	RecordHeader	header,
		byte	version = `0`
	)

private

Load an external image reference.

Definition at line 771 of file gfxfile.cpp.

References _characters, _gfx, Aurora::GFXCharacter::ExternalImage::bitmapFormat, Aurora::GFXCharacter::createExternalImage(), Aurora::GFXCharacter::ExternalImage::height, Aurora::GFXCharacter::ExternalImage::name, readLengthPrefixedString(), Aurora::GFXFile::RecordHeader::tagLength, and Aurora::GFXCharacter::ExternalImage::width.

Referenced by load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readGFXExporterInfo()

void Aurora::GFXFile::readGFXExporterInfo ( RecordHeader header )

private

Load the information about the gfx exporter.

Definition at line 748 of file gfxfile.cpp.

References _gfx, readLengthPrefixedString(), and Aurora::GFXFile::RecordHeader::tagLength.

Referenced by load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readGradientRecord()

GFXCharacter::GradientRecord Aurora::GFXFile::readGradientRecord ( byte version )

private

Read a gradient record.

Definition at line 993 of file gfxfile.cpp.

References _gfx, Aurora::GFXCharacter::GradientRecord::color, Aurora::GFXCharacter::GradientRecord::ratio, readRGB(), and readRGBA().

Referenced by readFillStyle().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readHeader()

void Aurora::GFXFile::readHeader ( )

private

Load all header information.

Definition at line 322 of file gfxfile.cpp.

References _frameCount, _frameRate, _frameSize, _gfx, and readRectangle().

Referenced by load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readImportAssets()

void Aurora::GFXFile::readImportAssets ( ActionScript::AVM & avm )

private

Read an import assets tag.

Definition at line 355 of file gfxfile.cpp.

References _characters, _gfx, getCharacter(), Common::FilePath::getStem(), and readNullTerminatedString().

Referenced by load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readInitAction()

void Aurora::GFXFile::readInitAction ( ActionScript::AVM & avm )

private

Read a DoInitAction tag.

Definition at line 716 of file gfxfile.cpp.

References _gfx, readAction(), warning(), and Common::StackException::what().

Referenced by load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readLengthPrefixedString()

Common::UString Aurora::GFXFile::readLengthPrefixedString ( )

private

Read a byte length prefixed string.

Definition at line 1124 of file gfxfile.cpp.

References _gfx, Common::kEncodingASCII, and Common::readStringFixed().

Referenced by readDefineFont(), readGFXDefineExternalImage(), and readGFXExporterInfo().

Here is the call graph for this function:

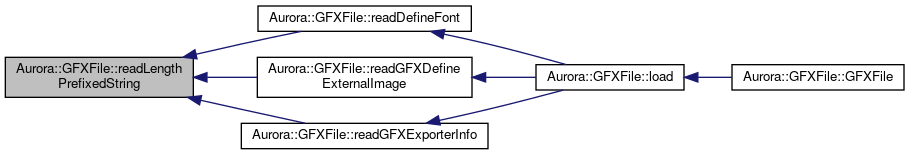

Here is the caller graph for this function:

◆ readLineStyle()

GFXCharacter::LineStyle Aurora::GFXFile::readLineStyle ( byte version )

private

Read a line style.

Definition at line 950 of file gfxfile.cpp.

References _gfx, Aurora::GFXCharacter::LineStyle::color, readRGB(), readRGBA(), and Aurora::GFXCharacter::LineStyle::width.

Referenced by readLineStyleArray().

Here is the call graph for this function:

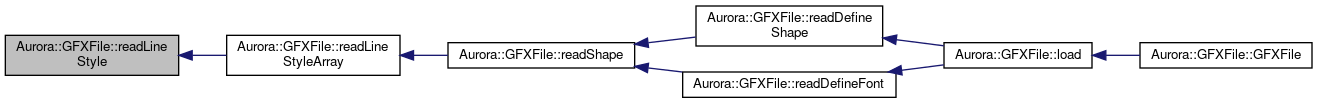

Here is the caller graph for this function:

◆ readLineStyleArray()

std::vector< GFXCharacter::LineStyle > Aurora::GFXFile::readLineStyleArray ( byte version )

private

Read a line style array.

Definition at line 937 of file gfxfile.cpp.

References _gfx, and readLineStyle().

Referenced by readShape().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readMatrix()

glm::mat3x2 Aurora::GFXFile::readMatrix ( )

private

Read a matrix.

Definition at line 828 of file gfxfile.cpp.

References _gfx, Common::ScopedPtrBase< T, Deallocator >::get(), Common::BitStreamImpl< valueBits, isLE, isMSB2LSB >::getBit(), read2ComplementValue(), and readNintendoFixedPoint().

Referenced by readFillStyle(), and readPlaceObject().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readNullTerminatedString()

Common::UString Aurora::GFXFile::readNullTerminatedString ( )

private

Read a null terminated string.

Definition at line 1120 of file gfxfile.cpp.

References _gfx, Common::kEncodingASCII, and Common::readString().

Referenced by load(), readDefineEditText(), readExportAssets(), readImportAssets(), and readPlaceObject().

Here is the call graph for this function:

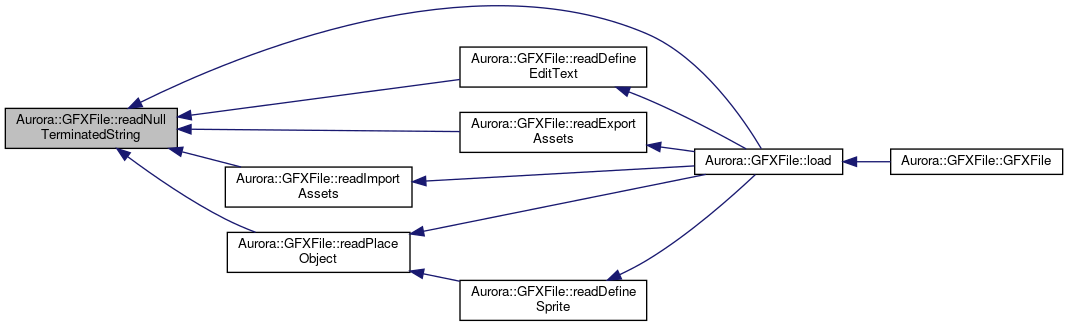

Here is the caller graph for this function:

◆ readPlaceObject()

GFXControl Aurora::GFXFile::readPlaceObject ( byte version = 1 )

private

Read a place object tag.

Definition at line 457 of file gfxfile.cpp.

Referenced by load(), and readDefineSprite().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readRecordHeader()

GFXFile::RecordHeader Aurora::GFXFile::readRecordHeader ( )

private

Read a record header for the next tag.

Definition at line 799 of file gfxfile.cpp.

References _gfx, Common::ScopedPtrBase< T, Deallocator >::get(), Aurora::GFXFile::RecordHeader::tagLength, and Aurora::GFXFile::RecordHeader::tagType.

Referenced by load(), and readDefineSprite().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readRectangle()

Common::Rect Aurora::GFXFile::readRectangle ( )

private

Read a basic rectangle type from the gfx file.

Definition at line 813 of file gfxfile.cpp.

References _gfx, Common::ScopedPtrBase< T, Deallocator >::get(), Common::BitStreamImpl< valueBits, isLE, isMSB2LSB >::getBits(), Common::Rect::h, read2ComplementValue(), Common::Rect::w, Common::Rect::x, and Common::Rect::y.

Referenced by readDefineEditText(), readDefineFont(), readDefineShape(), and readHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readRGB()

glm::u8vec3 Aurora::GFXFile::readRGB ( )

private

Read an RGB color record.

Definition at line 856 of file gfxfile.cpp.

References _gfx.

Referenced by readBackgroundColor(), readFillStyle(), readGradientRecord(), and readLineStyle().

Here is the caller graph for this function:

◆ readRGBA()

glm::u8vec4 Aurora::GFXFile::readRGBA ( )

private

Reag an RGBA color record.

Definition at line 864 of file gfxfile.cpp.

References _gfx.

Referenced by readDefineEditText(), readFillStyle(), readGradientRecord(), and readLineStyle().

Here is the caller graph for this function:

◆ readShape()

std::vector< GFXCharacter::ShapeRecord > Aurora::GFXFile::readShape	(	byte	version,
		bool	withStyle
	)

private

Read a shape.

Definition at line 1004 of file gfxfile.cpp.

Referenced by readDefineFont(), and readDefineShape().

Here is the call graph for this function:

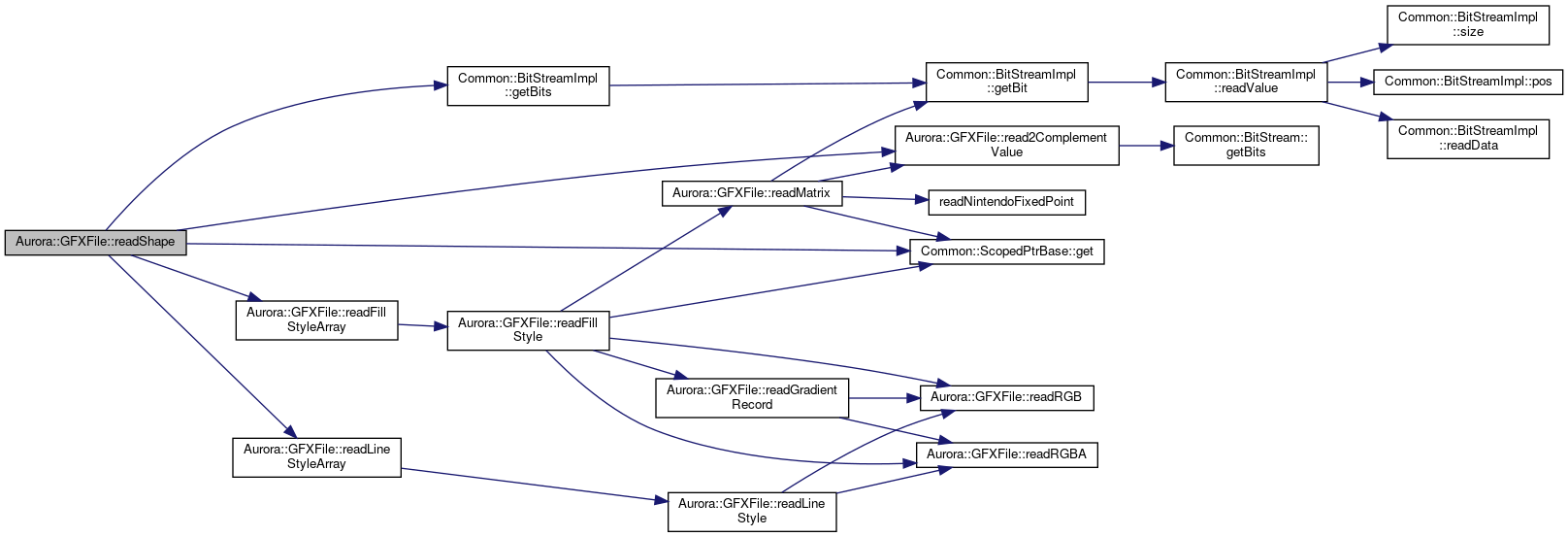

Here is the caller graph for this function:

Member Data Documentation

◆ _characters

std::map<uint16, GFXCharacter> Aurora::GFXFile::_characters

private

Every character associated with it's character id.

Definition at line 378 of file gfxfile.h.

Referenced by getCharacter(), readDefineEditText(), readDefineFont(), readDefineShape(), readDefineSprite(), readGFXDefineExternalImage(), and readImportAssets().

◆ _controlTags

std::vector<GFXControl> Aurora::GFXFile::_controlTags

private

All root control tags.

Definition at line 380 of file gfxfile.h.

Referenced by getControls(), and load().

◆ _exportTable

std::map<Common::UString, uint16> Aurora::GFXFile::_exportTable

private

Every exported character id with the associated export name.

Definition at line 376 of file gfxfile.h.

Referenced by getExportedAssetId(), and readExportAssets().

◆ _frameCount

unsigned short Aurora::GFXFile::_frameCount

private

The count of frames in this gfx file.

Definition at line 390 of file gfxfile.h.

Referenced by readHeader().

◆ _frameRate

float Aurora::GFXFile::_frameRate

private

The frame rate, how fast this gui should be played.

Definition at line 388 of file gfxfile.h.

Referenced by getFrameRate(), and readHeader().

◆ _frameSize

Common::Rect Aurora::GFXFile::_frameSize

private

The standard bounds of the ui in this file.

Definition at line 386 of file gfxfile.h.

Referenced by readHeader().

◆ _gfx

Common::ScopedPtr<Common::SeekableReadStream> Aurora::GFXFile::_gfx

private

The read stream of this gfx file.

Definition at line 383 of file gfxfile.h.

Referenced by load(), readAction(), readColorTransform(), readDefineEditText(), readDefineFont(), readDefineShape(), readDefineSprite(), readExportAssets(), readFileAttributes(), readFillStyle(), readFillStyleArray(), readGFXDefineExternalImage(), readGFXExporterInfo(), readGradientRecord(), readHeader(), readImportAssets(), readInitAction(), readLengthPrefixedString(), readLineStyle(), readLineStyleArray(), readMatrix(), readNullTerminatedString(), readPlaceObject(), readRecordHeader(), readRectangle(), readRGB(), readRGBA(), and readShape().

The documentation for this class was generated from the following files:

src/aurora/gfxfile.h
src/aurora/gfxfile.cpp

Classes

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ GFXFile()

Member Function Documentation

◆ getCharacter()

◆ getControls()

◆ getExportedAssetId()

◆ getFrameRate()

◆ load()

◆ read2ComplementValue()

◆ readAction()

◆ readBackgroundColor()

◆ readColorTransform()

◆ readDefineEditText()

◆ readDefineFont()

◆ readDefineShape()

◆ readDefineSprite()

◆ readExportAssets()

◆ readFileAttributes()

◆ readFillStyle()

◆ readFillStyleArray()

◆ readFocalGradient()

◆ readGFXDefineExternalImage()

◆ readGFXExporterInfo()

◆ readGradientRecord()

◆ readHeader()

◆ readImportAssets()

◆ readInitAction()

◆ readLengthPrefixedString()

◆ readLineStyle()

◆ readLineStyleArray()

◆ readMatrix()

◆ readNullTerminatedString()

◆ readPlaceObject()

◆ readRecordHeader()

◆ readRectangle()

◆ readRGB()

◆ readRGBA()

◆ readShape()

Member Data Documentation

◆ _characters

◆ _controlTags

◆ _exportTable

◆ _frameCount

◆ _frameRate

◆ _frameSize

◆ _gfx
